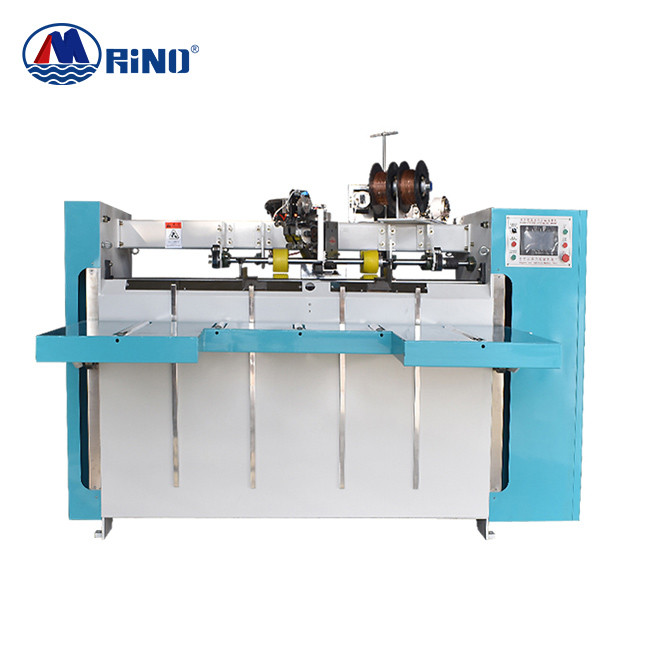

1515×2460mm Semi Auto Box Stitching Machine 2000KGS Easy Operate

Name: 15152460mm Semi Auto Box Stitching Machine 2000KGS Easy Operate
Brand: RINO
Price: 1 USD

Wholesale 1515×2460mm Semi Auto Box Stitching Machine 2000KGS Easy Operate from china suppliers

Brand Name : RINO

Model Number : HS-S2000

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Max. cardboard Size : 1515×2460mm

Min. cardboard Size : 300×606mm

Nail Distance : 30-100mm

Max Speed : 600 Nails/min

Name : Single Piece Semi Automatic Corrugated Carton Cardboard Box Stitcher Stitching Machine

Total Power : 6HP

Nail wire size : 2.0mm×(0.65-0.75mm)

Weight : 2000KGS

Contact Now

Semi Automatic Single Piece Stitcher Machine Carton Box Stitching Corrugated Box Making

Introduction of Cardboard Box Stitching Machine

1. It takes only one minute to change the size of the carton and adjust the stitching distance of the carton, which greatly saves time and is easy to operate.
2. Cases with or without cover can be nailed.(no cover box should be specified when ordering equipment)
3. The front end of the paper feeding automatic counting, the paper feeding table with a light sensor, the paper feeding automatic rising.
4. The paper feeding part in the back section, the number of finished sheets can be folded according to the set number (0-99) and sent to the packing rack for convenient packing.

Cardboard Box Stitching Machine Parameter

Model	HS-S2000
MAX.Cardboard Size	1515×2460mm
MIN .Cardboard Size	300×606mm
Nail Distance	30-100mm
Speed	600 nails / min
Total Power	6HP
Nail Wire	2.0mm×(0.65-0.75mm)
Paper Stacking Height	900MM
Weight	2000KGS

Main Units of Box Stitching Machine

1515×2460mm Semi Auto Box Stitching Machine 2000KGS Easy Operate

Stapling head, punching and sliding are all adopts Japan alloy steel DC53 by strict heat process to ensure durable.

Suit for 3/5 ply offset carton and cover or no cover was stitched.

Single nail, double nail, strengthen nail can be stitched one time.

Size was controlled by electric, fault was showed on the screen.

Accessory List

NO	NAME	NO.	BRAND
1	Touch screen	1	WEINVIEW,TAIWAN
2	SERVO MOTOR	2	MITSUBISHI,JAPAN
3	PLC		OMRON,JAPAN
4	MOTOR	1	LIMING,TAIWAN
5	BLADE	1	Japanese Tungsten Steel
6	STITCHING HEAD	1	Imported from Taiwan, Italian technology
7	PHOTOELECTRIC SENSOR	2	OMRON,JAPAN
8	BREAKER		Schneider
9	BUTTON		Schneider
10	Wire Feeder	1	SHANGHAI
11	WALLBOARD	1	THICKNESS12mm
12	BEARINGS	1	C&U
