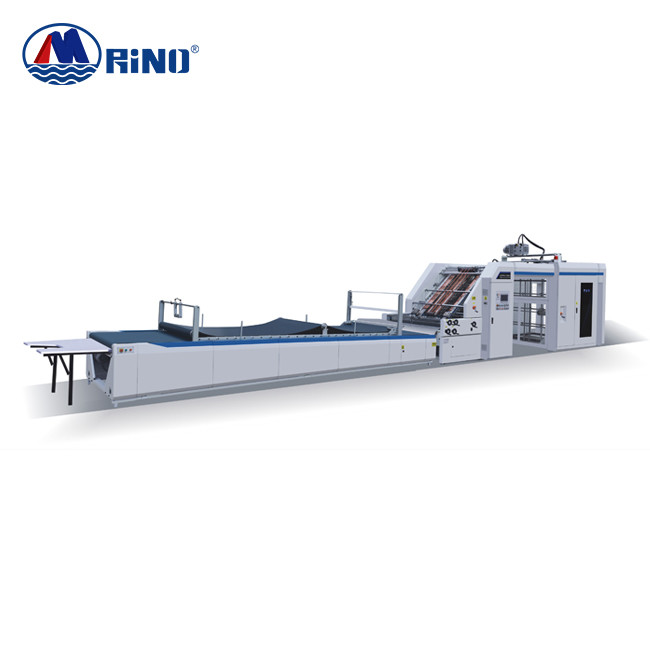

Corrugated Board Laminating Machine 13000 Pcs/H Easy Maintenance

Name: Corrugated Board Laminating Machine 13000 PcsH Easy Maintenance
Brand: RINO
Price: 1 USD

Wholesale Corrugated Board Laminating Machine 13000 Pcs/H Easy Maintenance from china suppliers

Brand Name : RINO

Model Number : HF-H1650

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Name : Model 1650 Automatic High Speed Flute Laminating Machine For Corrugated Cardboard

Maximum paper size : 1650*1650mm

Minimum paper size : 450*450mm

Max. Speed : 13000 Pcs/H

Overall dimension : 13900Lx2700Wx2600H

Total weight : 7.5T

Total power : 23KW

Laminate precision (mm) : ≤±1.5

Contact Now

Model 1650 Automatic High Speed Flute Laminating Machine For Corrugated Cardboard

Flute Laminatng Machine Introduction

Automatic Flute Laminating machine used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N , three, five, seven story can work, fluted a good flatness of the paper, high accuracy. Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance. Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance.

Main Parameter

Model	HF-H1450	HF-H1650	HF-H1900	HF-H2100
Maximum size(mm)	1450*1450	1650*1650	1900*1650	2100×1650
Minimum size(mm)	450*450	450*450	450*500	450*500
Top feeding paper thickness	200g/m2-500g/m2	200g/m2-500g/m2	200g/m2-500g/m2	200g/m2-500g/m2
Bottom feeding paper thickness	0.5~10mm	0.5~10mm	0.5~10mm	0.5~10mm
Laminate precision (mm)	≤±1.5	≤±1.5	≤±1.5	≤±1.5
Max.Speed	150m/min	150m/min	150m/min	150m/min
Overall dimension	13500Lx2450Wx2600H	13900Lx2700Wx2600H	14500Lx2950Wx2600H	13900Lx3100Wx2600H
Total weight(t)	6.5	7.5	8.5	9.5
Total power	22KW	23KW	25KW	25KW

Main Units

Corrugated Board Laminating Machine 13000 Pcs/H Easy Maintenance

Top paper feeding unit

Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

Bottom paper feeding unit

Use imported Servo motor electric controlling system, with Japan suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.

Positioning unit

The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.
